Description:

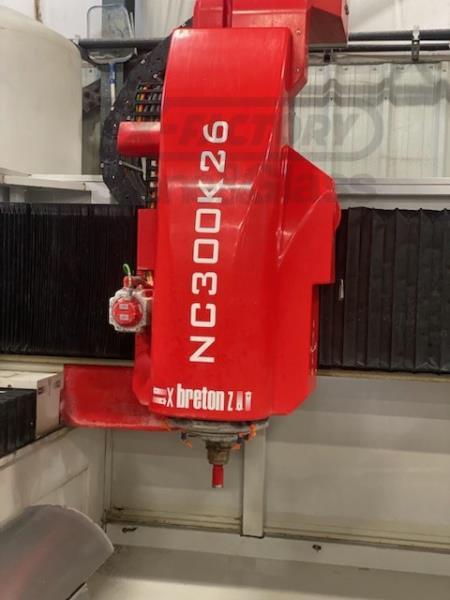

BRETON CONTOUBRETON NC300 K26 EVO CNC Stone Work Center.

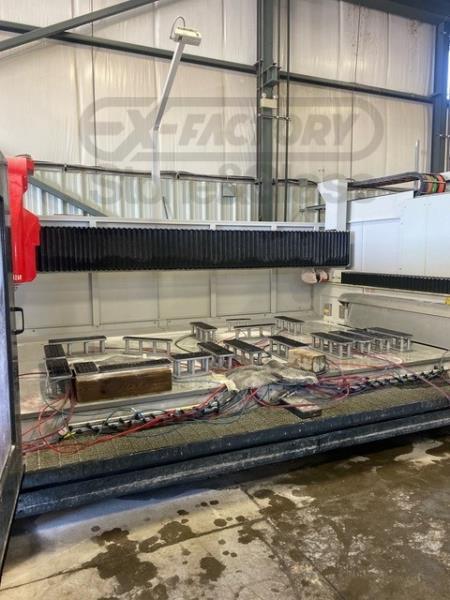

(2) Tables, each bed size of 147" x 88"(3740mm x 2240mm), X-axis travel 149" (3900mm), Y-axis travel 90" (2200mm), Z-axis travel @ 0° - 11.8" (300mm); 15 KW (20) HP electric motor, 0 - 12,000 RPM spindle ; variable speed to 9,000 RPM; each table is motorized to shuttle in & out (one side is machining while other is being loaded/setup).
 4-Axis multi-functional Work Center for for carving, milling, drilling, grinding, polishing, profiling, inlaying, aging, etc.
Complete with: Automatic tool changer, 26-position rotary tool rack, HSK-B80 tool holders.
Remote hand held control unit & air conditioned control cabinet; parametric library, capability to import DXF & IGES files; tool path simulation, and parametric macros for fast and efficient programming.

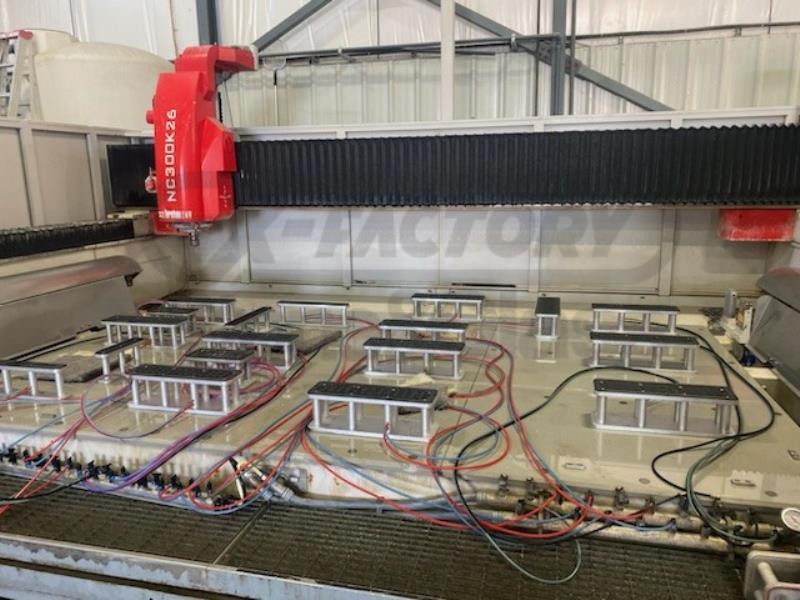

Highlights: Rigid cast iron spindle structure for minimal flex under heavy loads, digital motors, aluminum bed surface utilizing double-sided suction cups, fully enclosed for safety.
Equipped with hand-held scanner (for ID & inventory stock control), (2) Lap scanners for setup of vacuum pods and part setup.
Includes tool holders, tooling (TBA), vacuum pods, software & software key and manuals. Overall dimensions 275"L, 160"W, 126"H, weight 20,000 Lbs.
All specifications and included supply subject to buyer verification. - Not included: dismantling, rigging, loading, freight, installation, training or warranty.
Can be viewed under power. .
|
