GMM BRIO 35 CNC 5-AXIS BRIDGE SAW


Additional Photos (Click to view Larger)



For Immediate Answers Contact:

Tony Cornacchione

(704) 841-2001 ext. 432
TCorn@exfactory.com





If not available, try his/her backup:
Torry Hiddema at ext ...371

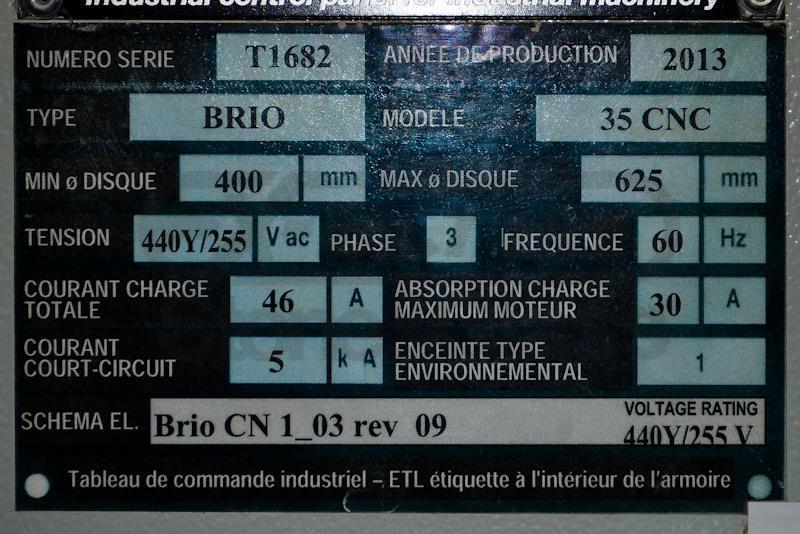

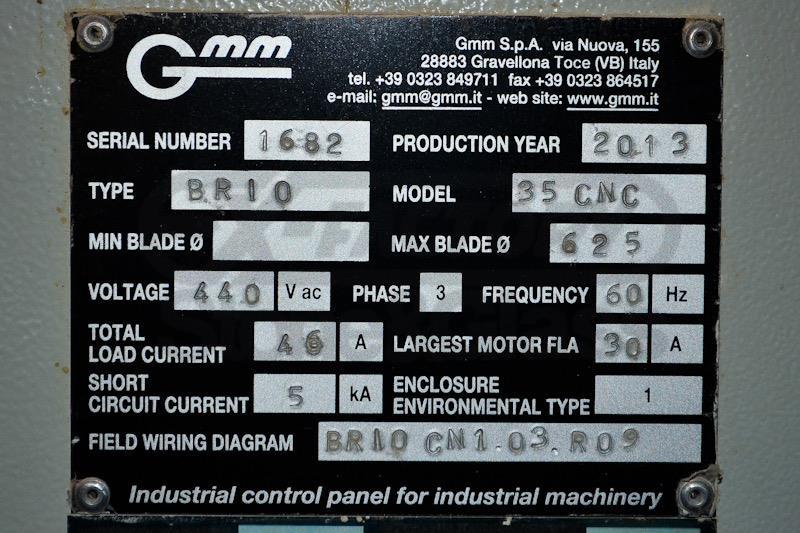

EXF #:   SN-011820
Brand/Model:   GMM BRIO 35 CNC
Machine Type:   5-AXIS BRIDGE SAW
Year of Mfg.:   2013
Condition:   Good Condition
Elect./Voltage:   440 V, 60 Cy, 3 Ph.
Appr. Repl. Cost:   $  250,000
Price:   $  40,000    USD     (Convert)
Financing:   $  814/Mo.
Description:

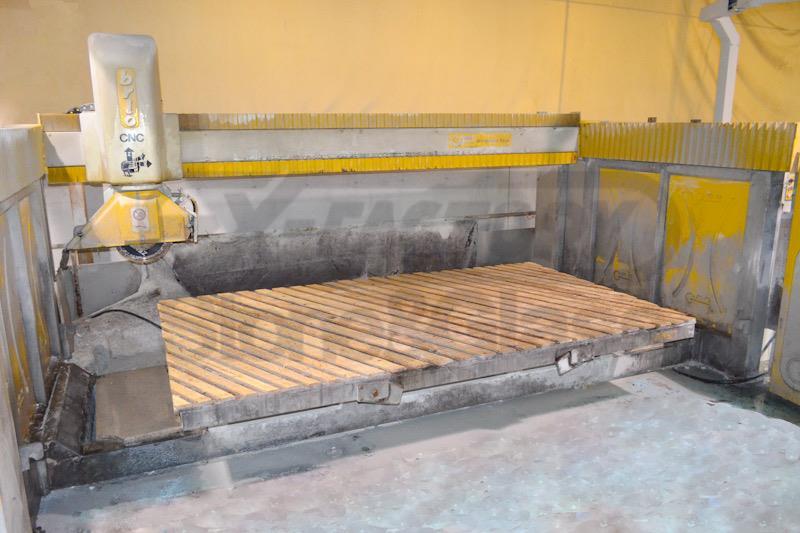

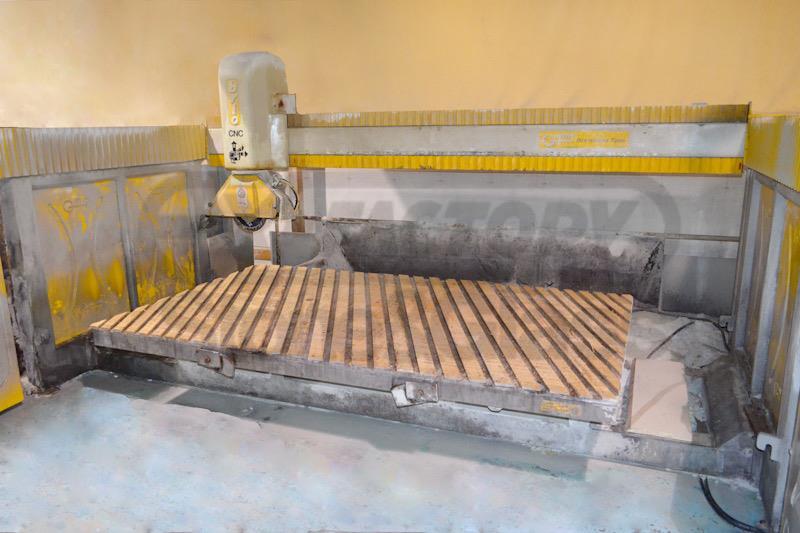

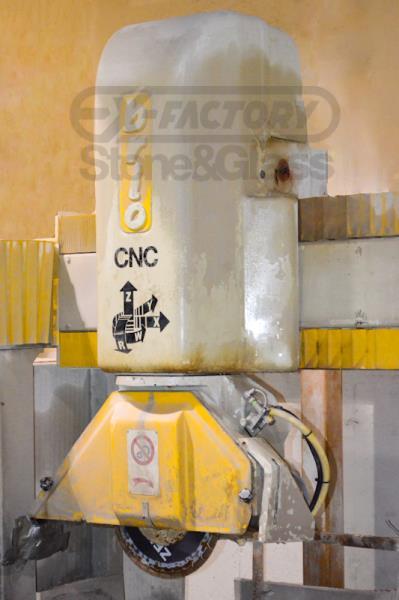

GMM BRIO 35 CNC 24" 5-Axis CNC Bridge Saw, with Hydraulic Tilt Table

Specifications:

  Distance between rails 193".

  Distance from bridge to floor 63".

  X-Axis (Head Cross) Travel 3,500 mm (137.80").

  Y-Axis (Gantry) Travel 2,100 mm (82.68").

  Z-Axis (Head Raise & Lower) Travel 420 mm (16.54").

  W-Axis (Arbor Rotation) Travel 0 - 180°.

  R-Axis (Miter Rotation) Travel 0 - 45°.

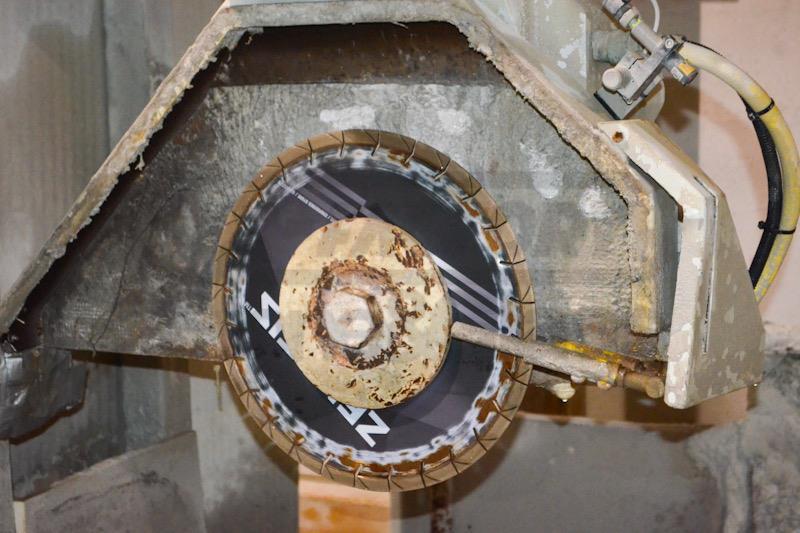

  Blade dia. 400 - 625 mm (15.75” - 24.61").

  Arbor dia. 50 mm (1.97").

  Max. vertical depth of cut 205 mm (8.07").

Equipped with:

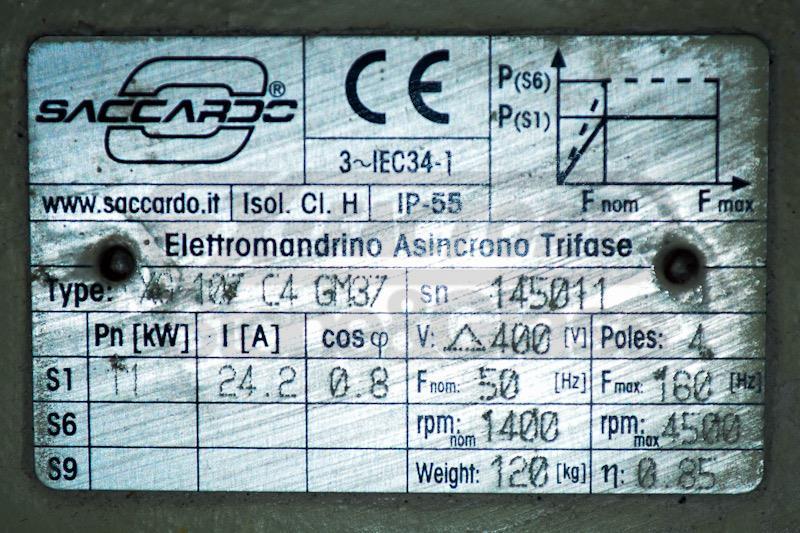

  11 kW (14-3/4) HP Motor.

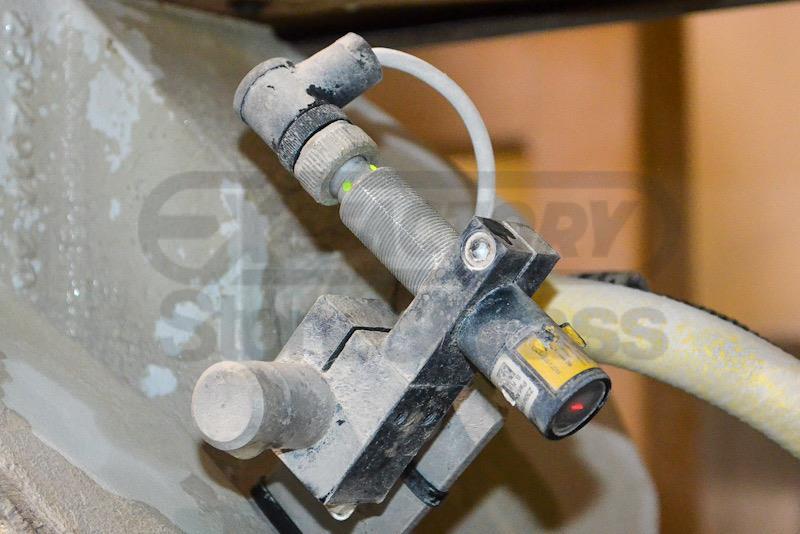

  Head-mounted laser.

  Double tri-fold doors.

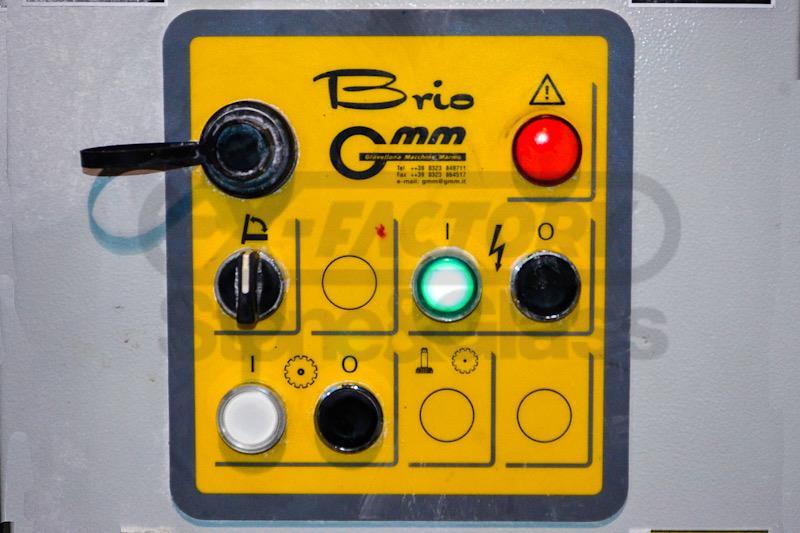

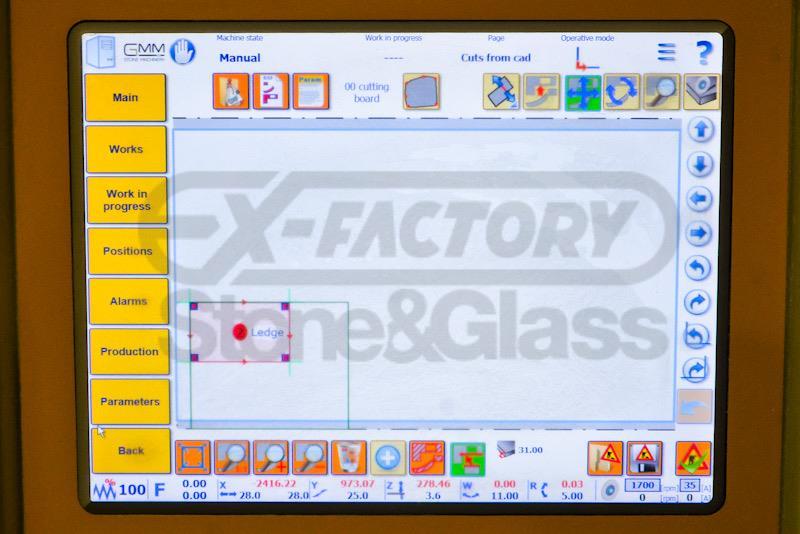

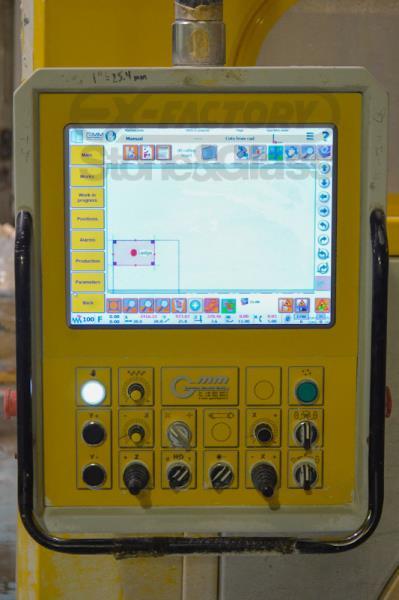

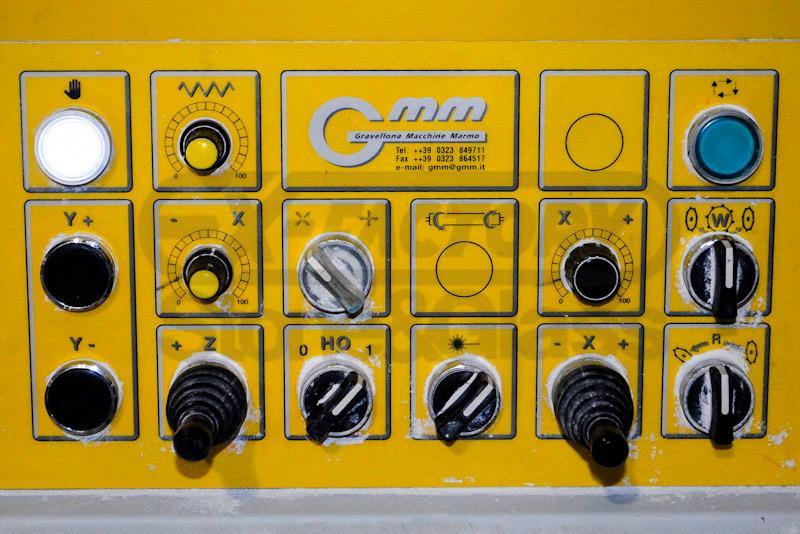

  CNC Pendant control, with 15" Color touchscreen.

Complete with:

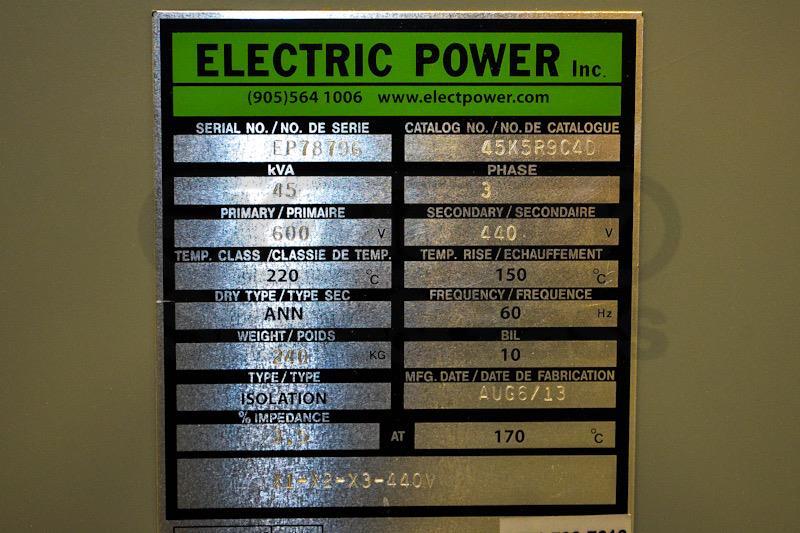

  600 V to 440 V Step-Down Transformer.

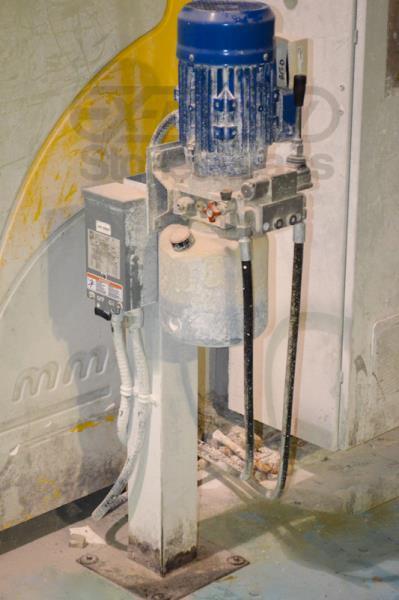

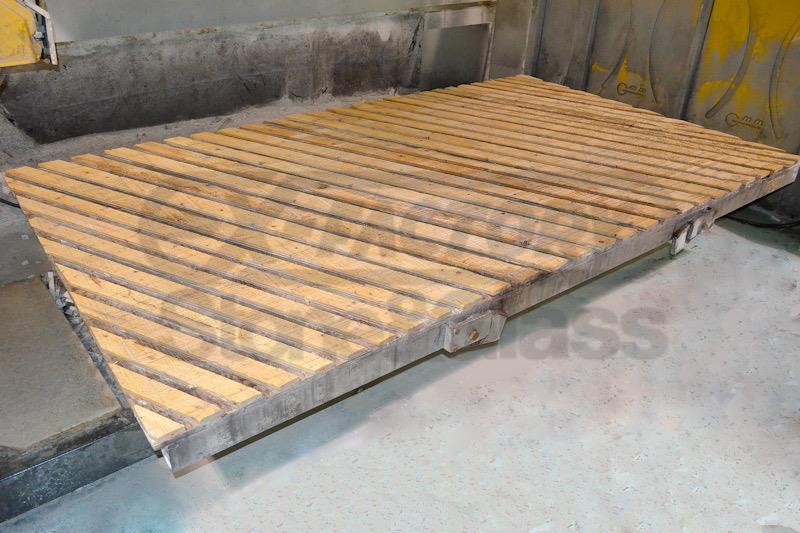

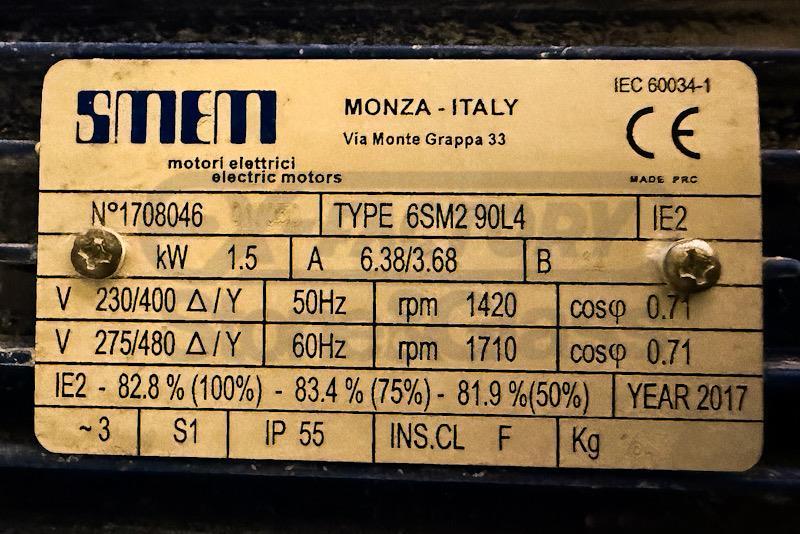

  79“ x 134“ x 26“ H Hydraulic Tilt Table, with 1.5 kW (2 HP) - 1,710 RPM - 275/480 V Motor & (2) Front swivel bolt slab stops.

  16" Dia. Blade.

Machine Dimensions: 230" x 146" x 106" H.
Transformer Dimensions: 28" x 19" x 27" H.
    Region: EASTERN CDN (Click for Regional Map)
    Special Note: Make Offer
    Comment: Complete with Hydraulic Tilt Table!
    *Dimensions: 230" L x 146" W x 106" H
    *Weight: 8,160 Lbs
    Written By: Kevin Welker
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
