Description:

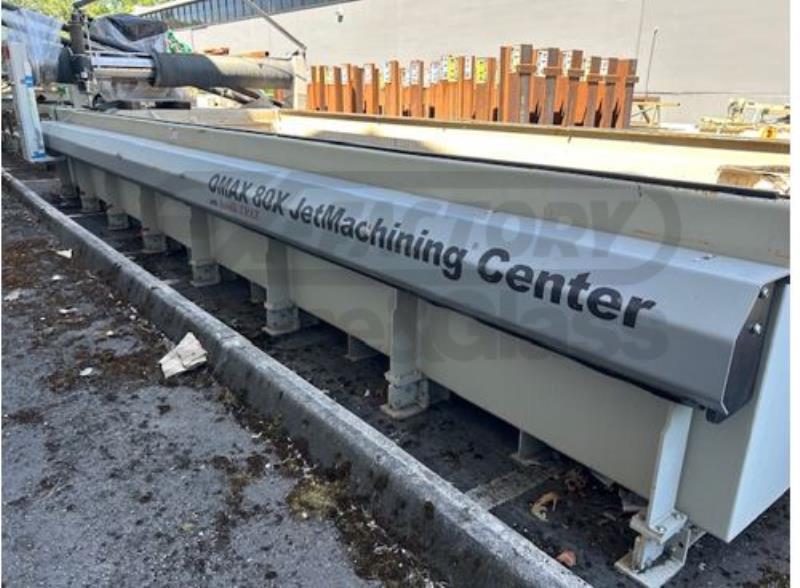

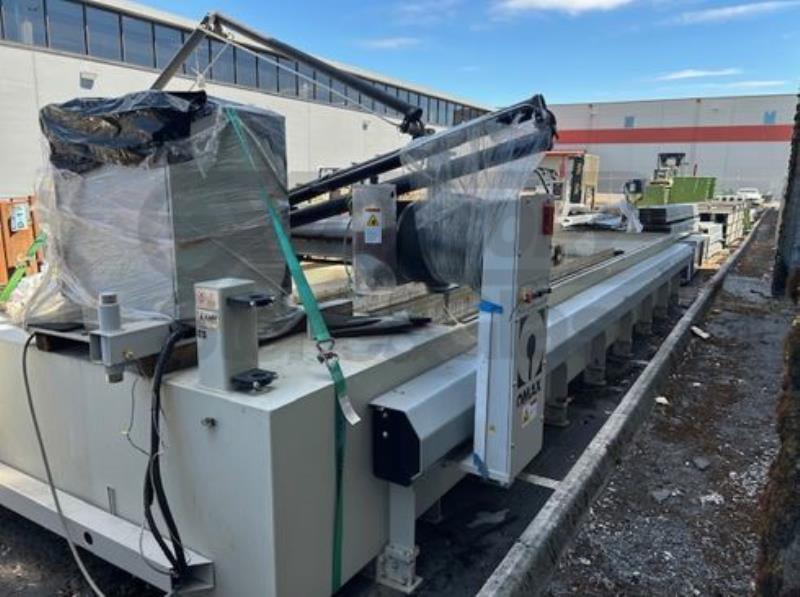

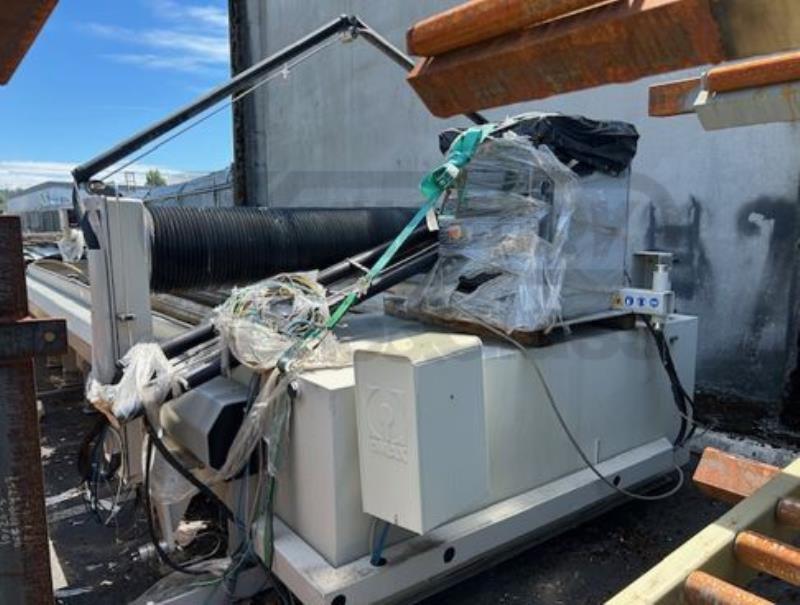

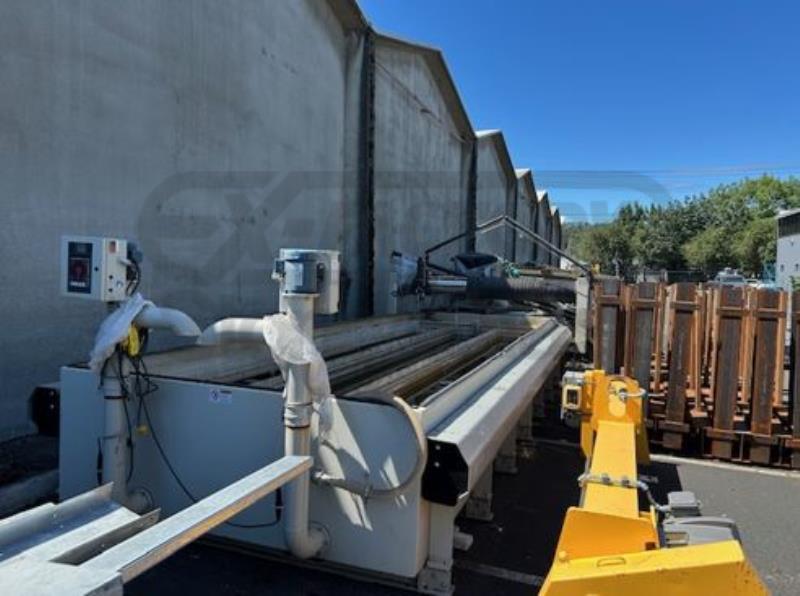

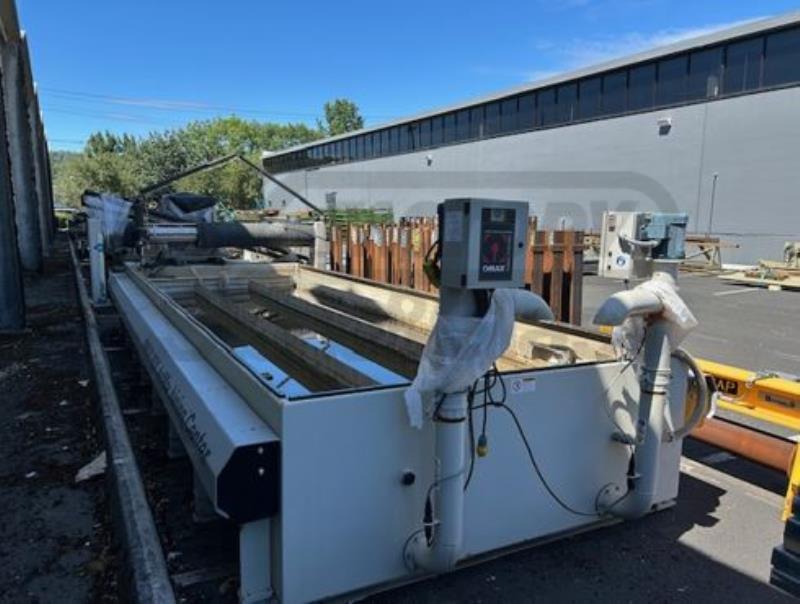

OMAX 80X+2M CNC WaterJet Maching Center. Abrasive Waterjet Cutting System
Specifications:
 Cutting Envelope 6-8' x 20' (2,032 mm( x 6,096 mm ).
Z-Axis Travel 8″ (203 mm)
Direct drive pump, 50 HP.
Max. output pressure 60,000 PSI
Max. Tilt-A-Jet 9°
Closed-loop digital drives, brushless servo motors, Intelli-TRAX® linear drive with linear encoders on the X-axis, precision motorized Z-axis.
Cutting Speed (80X / 80X-1) 180 in/min (4,572 mm/min).
Linear Positional Accuracy ±0.001″ (±0.025 mm).
Repeatability: ±0.001″ (±0.025 mm)
Ballbar Circularity: ±0.003″ (±0.127 mm).
Equipped with:
OMAX PC-based CNC control running Intelli-MAX® Software.
EnduroMAX direct drive pump 50 HP., Generation 4.
Motorized Z (base machine).
MAXJET 5i Nozzle Assembly.16/42 Std MT Diamond Nozzle Assembly (0.016in orifice, 0.042in mixing tube)
Adapter, In-Line RMS, Size .036in, 3/8 Female/Female
3-Axis w/ compensating head

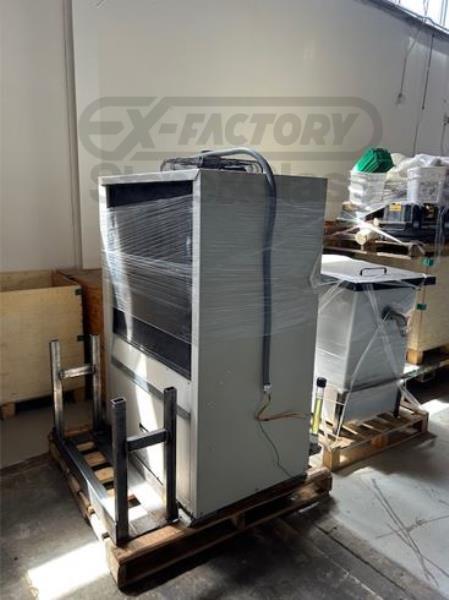

3-Ton ICT Chiller Assembly.
Closed loop system with chiller and filter.
Settling tank.
Variable speed solids removal system (VS-SRS) w/ hoppers.
Bulk hopper for abrasive delivery 600 Lb.
Nozzle Spares Kit, MAXJET 5i, Integrated Valve.
EnduroMAX Pump Basic Spares Kit.
Material Support Slats. 4″ x 1/8″ Galvanized Steel
Maximum Supported Material Load: 400 lbs/sq ft (1,950 kg/sq meter)
Condition & Usage Summary:
Used on a limited basis — cutting sheet steel for two projects over a period of less than two years.
No longer in use since 2023, following completion of those two projects.
Decommissioned and prepared for transport in connection with a factory move.
Not currently set up or connected for operation — recommissioning/inspection will be needed before the machine can run.
Sold as-is, where-is; buyer/broker responsible for inspection, rigging, and transport unless otherwise negotiated.
Dimensions/Weights:
Footprint (with controller): Approx. 22′1″ x 12′8″ to 35′0″ x 15′0″ class (scales with length variant).
Weight (tank empty): 9,000–13,000 lbs (4,082–5,897 kg)
Operating Weight (tank full): 34,000–54,000 lbs (15,422–24,494 kg)
Height (with scissor plumbing): 12′0″ (3,658 mm)
|
