GMM BRIO 35 CNC24 5-AXIS BRIDGE SAW


Additional Photos (Click to view Larger)



For Immediate Answers Contact:

Tony Cornacchione

(704) 841-2001 ext. 432
TCorn@exfactory.com





If not available, try his/her backup:
Kevin Welker at ext ...316


EXF #:   SN-280152
Brand/Model:   GMM BRIO 35 CNC24
Machine Type:   5-AXIS BRIDGE SAW
Year of Mfg.:   2014
Condition:   Very good condition
Elect./Voltage:   220-230/380-400 V, 60 Cy, 3 Ph
Appr. Repl. Cost:   $  240,000
Price:   $  50,000    USD     (Convert)
Financing:   $  1,017/Mo.
Description:

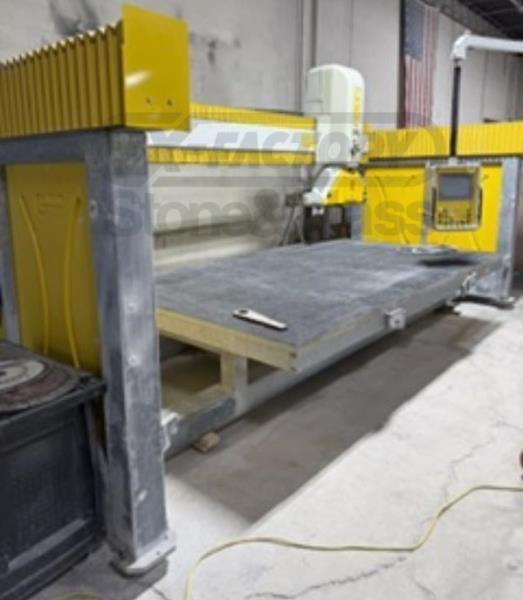

GMM BRIO 35 CNC24" 5-Axis CNC Bridge Saw, with Hydraulic Tilt Table

 Specifications:

  Distance between rails 193".

 Distance from bridge to floor63".

  X-Axis (Head Cross) Travel 3,500 mm (137.80").

  Y-Axis (Gantry) Travel 2,100 mm (82.68").

  Z-Axis (Head Raise & Lower) Travel 420 mm (16.54").

  W-Axis (Arbor Rotation) Travel 0 - 180°.

  R-Axis (Miter Rotation) Travel 0 - 45°.

  Blade dia. 400 - 625 mm (15.75” - 24.61").

  Arbor dia. 50 mm (1.97").

  Max. vertical depth of cut 205 mm (8.07").

 Equipped with:

  11 kW (14-3/4) HP Motor.

  Head-mounted laser.

 Double tri-fold doors.

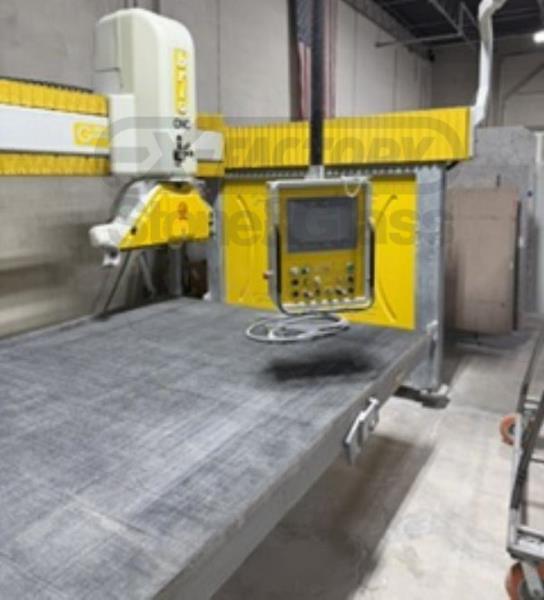

  CNC Pendant control, with 15" Color touchscreen.

 Complete with:

 600 V to 440 V Step-Down Transformer.

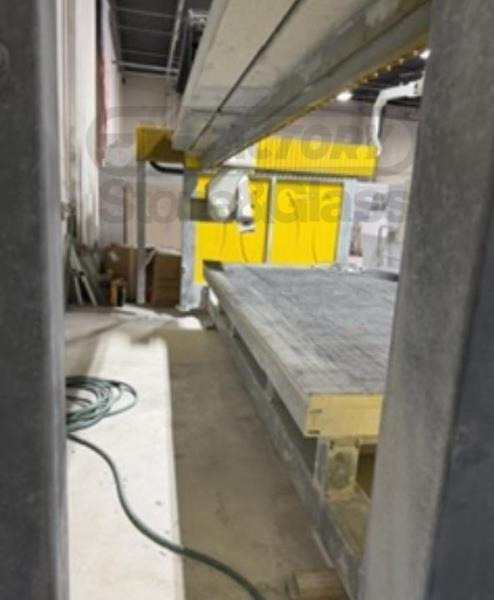

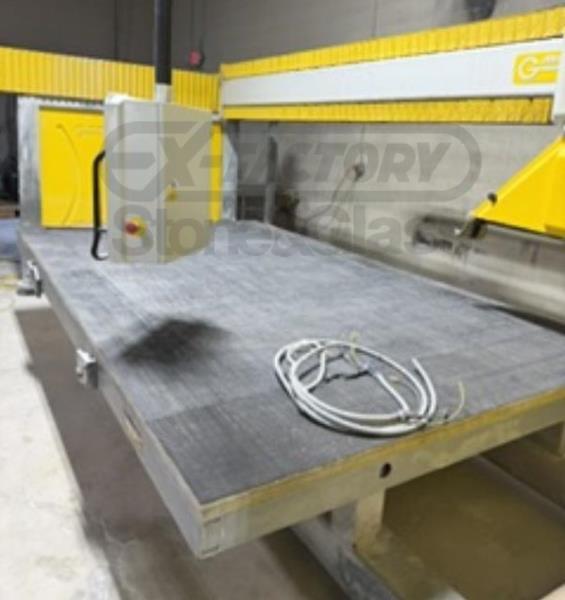

  79“ x 134“ x 26“ H Hydraulic Tilt Table, with 1.5 kW (2 HP) - 1,710 RPM - 275/480 V Motor & (2) Front swivel bolt slab stops.

  16" Dia. Blade.

 Machine Dimensions:230" x 146" x 106" H.÷Transformer Dimensions:28" x 19" x 27" H.
    Region: MIDWEST (Click for Regional Map)
    Special Note:
    Comment:
    *Dimensions: Available From Product Manager
    *Weight: Please Call
    Written By: Original Seller
    *Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
